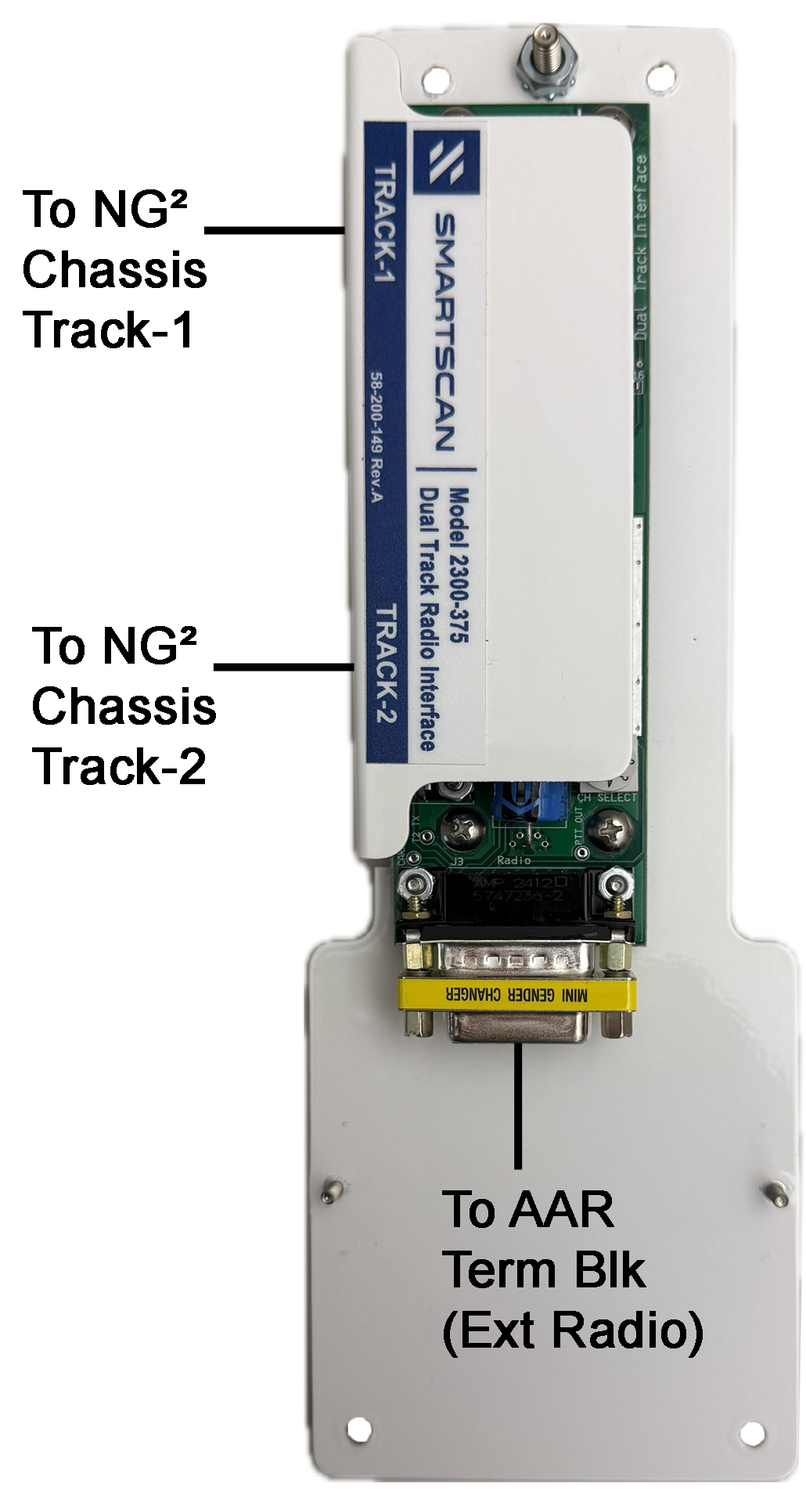

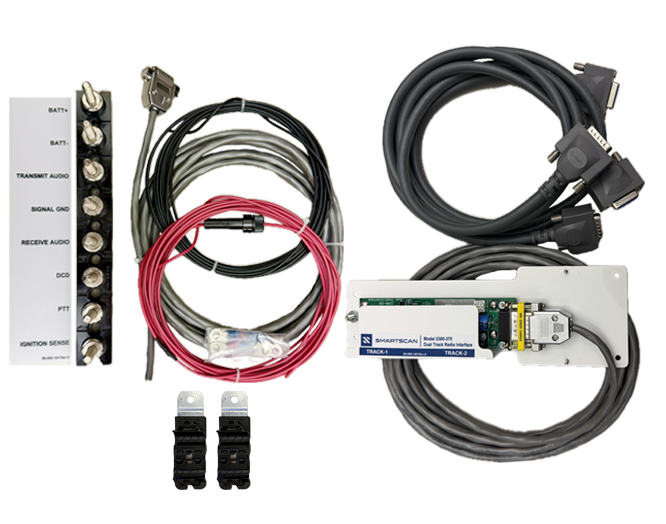

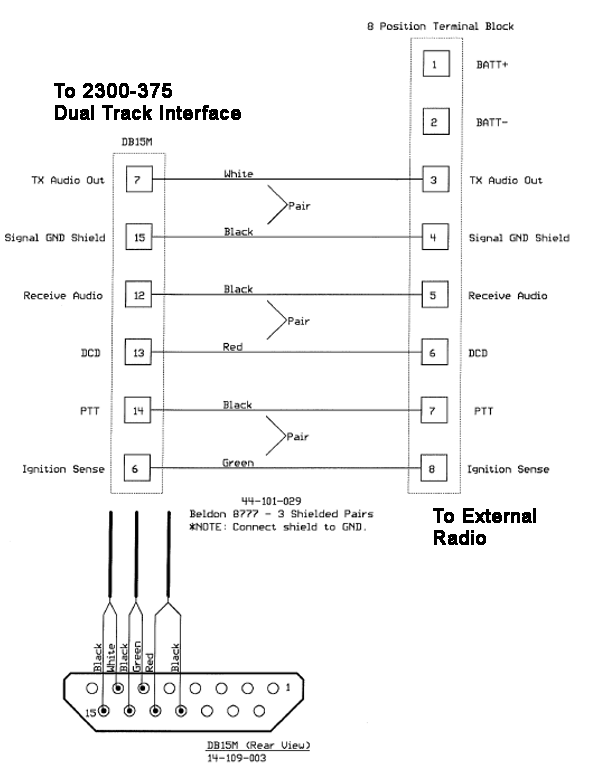

The 2300-506MT kit includes two DB15M/DB15F cables, a prewired DB15M cable, ring terminals, and a fused power cable. The two DB15M/DB15F cables plug directly into the 2300-375 Interface board (Track-1 & Track-2 inputs) and are then routed to each SmartScanNG2 chassis. The prewired DB15M cable connects to the bottom of the 2300-375 board. It is then cut to length and terminated to the AAR block to provide connection points for an external radio.
